MistBuster® 500 Electronic Air Cleaner – Compact CNC Mist Collector
MistBuster® 500 Electronic Air Cleaner – Compact CNC Mist Collector

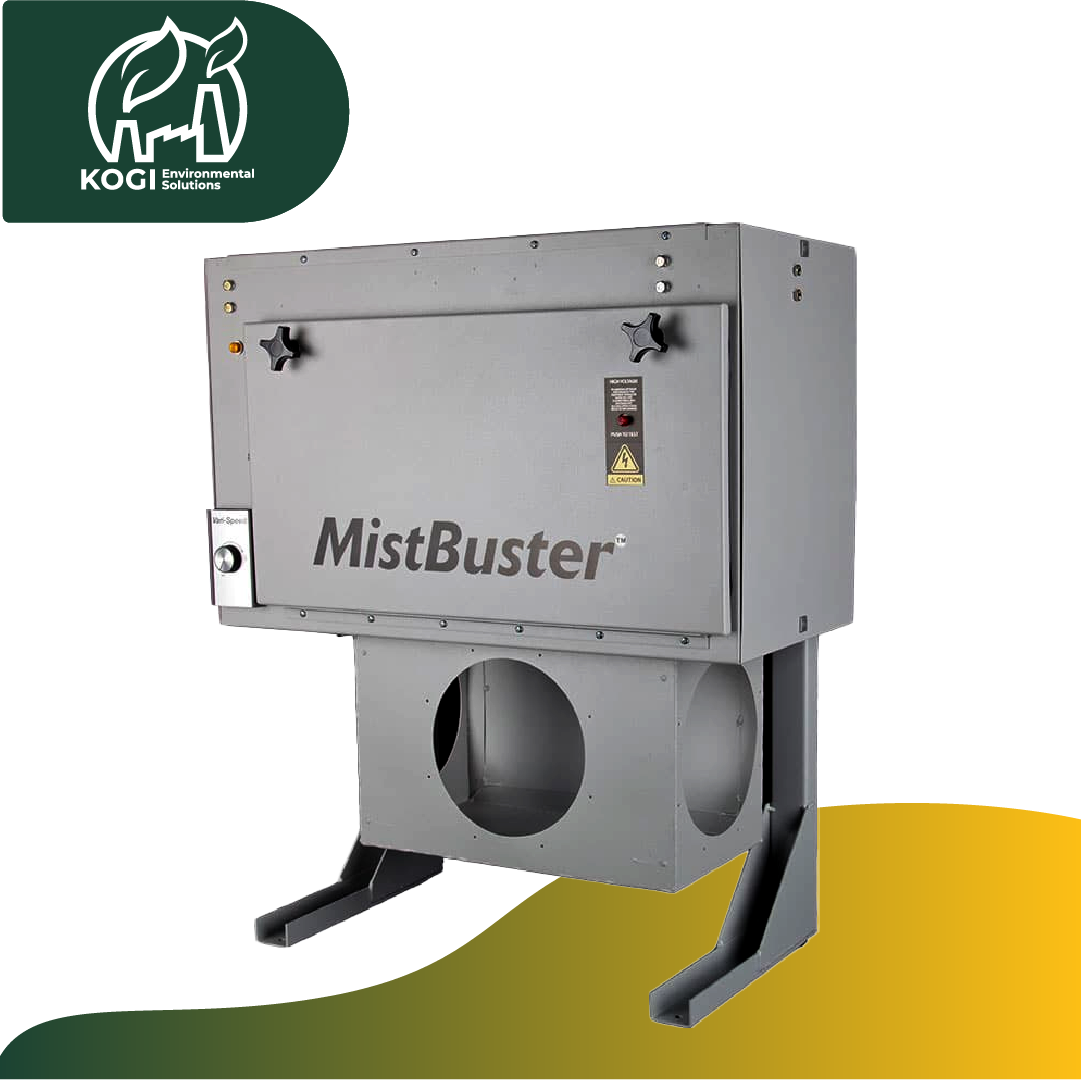

The MistBuster® 500 by Air Quality Engineering is a compact, high-efficiency electronic air cleaner designed to remove oil mist, coolant mist, smoke, and other airborne particulate produced by CNC machining and metalworking processes.
With an airflow capacity of 500 CFM, the MistBuster® 500 delivers powerful source capture in a machine-mounted package, making it an ideal choice for small CNC machines or installations where space is limited.
Its multi-stage filtration system, featuring electrostatic precipitation technology, effectively captures submicron particles, helping shops meet OSHA and NIOSH indoor air quality standards. The washable collector cells reduce consumable filter costs and minimize downtime, while the quiet operation improves overall workplace comfort.
The MistBuster® 500 offers multiple mounting configurations—including direct machine mount and ducted connection—to fit diverse shop layouts. It’s designed for continuous operation in demanding industrial environments, providing clean air, reduced maintenance, and long-term value.
Specifications
| MODEL | MB500 |
| AIRFLOW | Variable to 500 cfm |
| PRIMARY FILTER | Electrostatic |
| CABINET | 16 gauge steel cabinet with powder coated chemical resistant baked enamel, available in ivory or gray textured finish |
| POWER INPUT | 115 Vac, 60 Hz, 1 ph, 2.5 amps 240 Vac, 60 Hz, 1ph, 1.25 amps 460 Vac, 60 Hz, 1ph, 0.63 amps (connects to 2 legs of 460 VAC 3 ph) |
| EFFICIENCY | Ultimate efficiency up to 97.8% on all submicron particles as measured by independent lab test in accordance with ASHRAE standard 52.2 at 500 CFM |

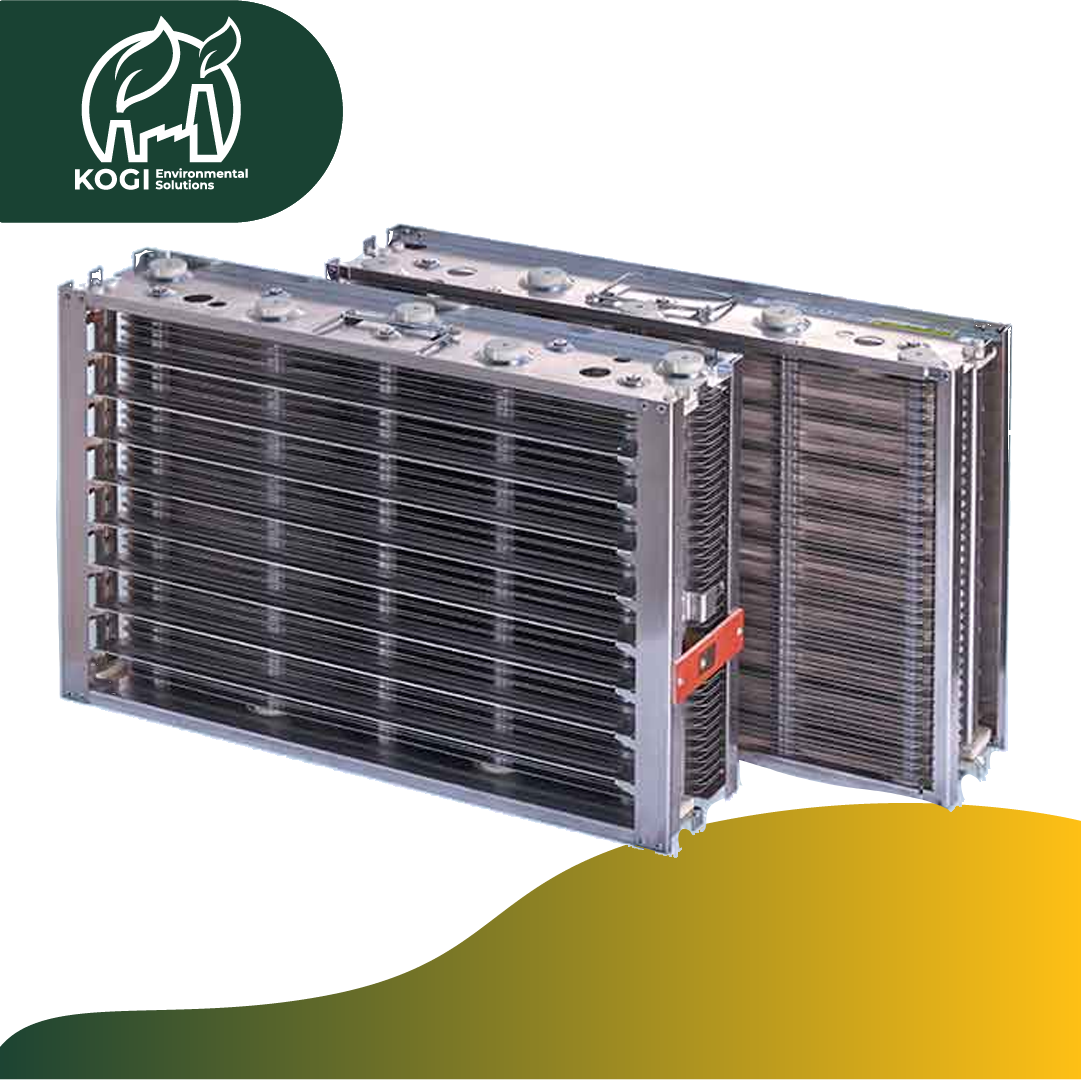

| FILTRATION STAGES | 1st Stage 4″ aluminum mesh impinger 2nd Stage AQE Advantage™ electronic cell (long life) 3rd Stage Optional HEPA filter 99.97% efficiency, ESF filter, or carbon module |
| FEATURES | Energy-efficient, self-regulating, dual-voltage, solid-state power supply Patented water/oil coolant selector for a wider range of application compatibility Patented electronic cell design that helps decrease service intervals ErP-compliant, backward-curved, vibration-free, direct drive motorized impeller rated at 500 CFM @ 1.3″ w.g. provides energy-efficient operation and increased performance to save on operating costs while performing well with increased airflow resistance from post filter or long duct lengths Ten-foot power cord with molded plug Quick-release, quarter-turn fasteners for fast, easy side-panel electrical compartment access reduces service and repair time Door and gasket profile increases door-to-seal contact to prevent leakage and pooling of coolant inside of door Door-latch spacers prevent over-compression of the gasket and increase gasket life |
| DIMENSIONS | Cabinet 27.10″ L x 14.00″ W x 17.16″ H |
| INLET OPENING | 16.62″ x 9.08″ |
| WEIGHT | 65 lbs. installed 76 lbs. shipping |
| ACCESSORIES | Machine Mount Stand | Pedestal Stand Ceiling Mount Kit | Wall Mount Kit | Plenum Diffuser | HEPA Post filter | ESF Post filter Carbon Module |
