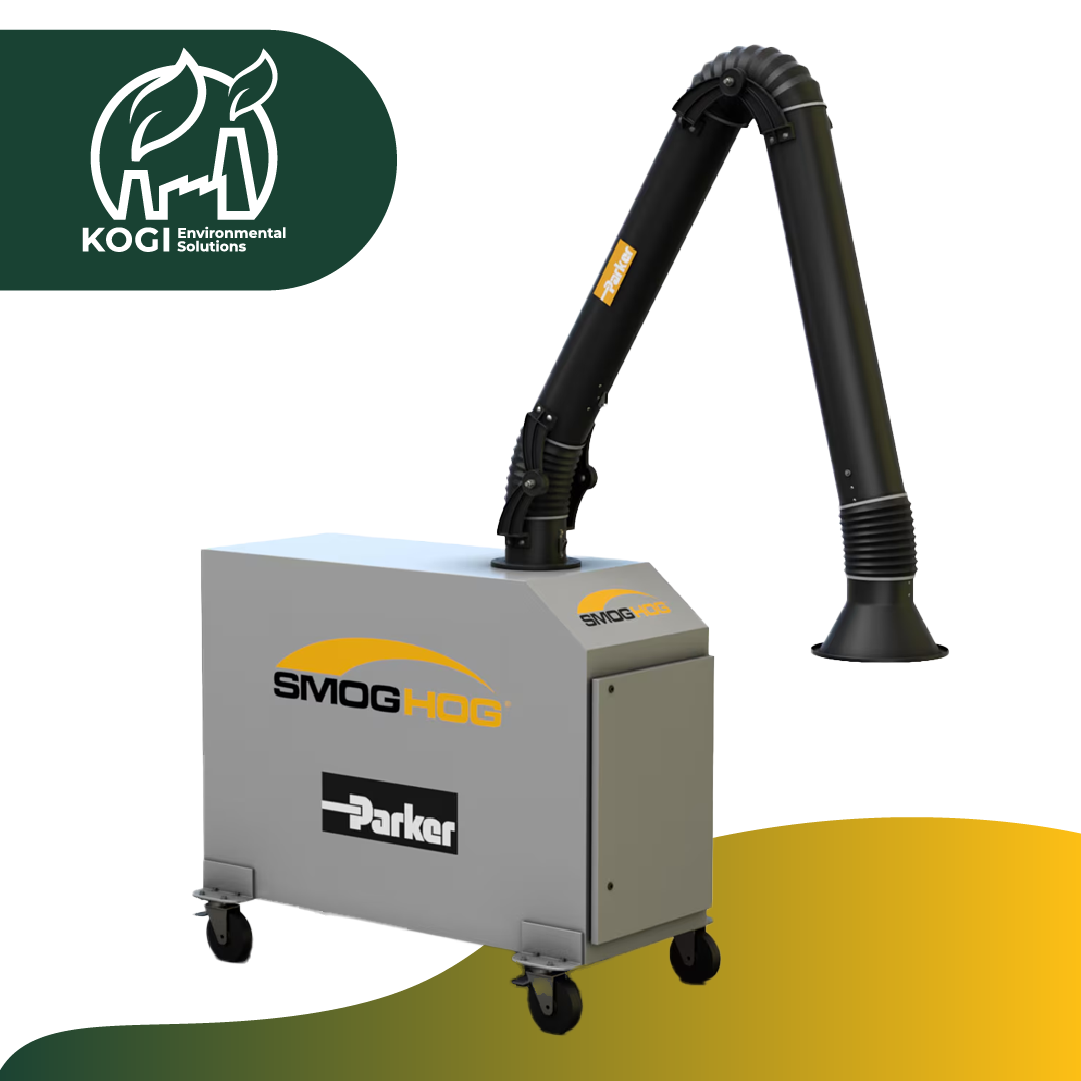

Improve workplace safety and air quality at the source with the Smog-Hog® PCN® Mobile Collector, a high-efficiency solution for capturing oil mist, metal oxide fumes, and welding smoke using electrostatic precipitator (ESP) technology. Designed for industrial environments, this mobile system captures airborne contaminants directly from the emission point, reducing particulate buildup on equipment and ensuring OSHA-compliant indoor air conditions.

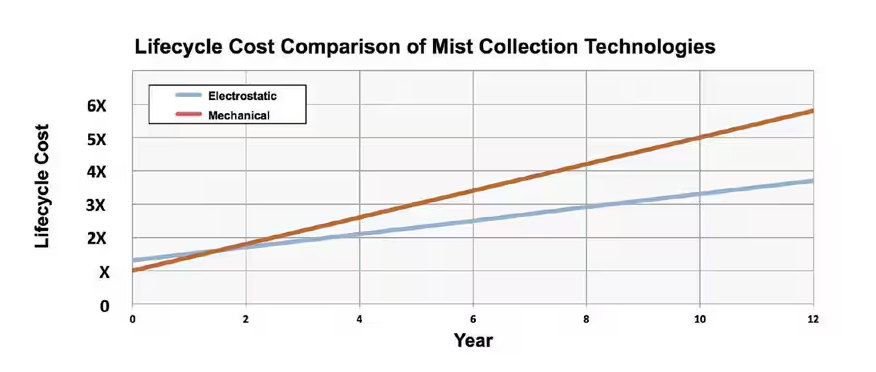

The PCN’s ESP system electrically charges airborne particles and pulls them from the air like a magnet—without the need for costly disposable filters. Its aluminum pre-filter and collection cell are reusable and easy to clean, drastically reducing maintenance and operating costs. Each cell holds over one pound of contaminants before requiring cleaning, minimizing downtime.
Paired with Parker’s exclusive XA swing arm and bell-mouth capture hood, the PCN delivers powerful and precise extraction—ideal for welding stations, soldering, brazing, grinding, and similar industrial operations.
1,000 CFM airflow for high-volume fume and mist capture
Reusable ESP filter system with 20,160 sq. in. surface area
Heavy-duty construction: 16-gauge powder-coated steel cabinet
Reduces makeup air demand by recirculating clean air
Exhausts air vertically, away from the operator
ETL Listed for 115V/1Ph/60Hz, 0.5 HP (optional 1 HP, 230V)
Meets OSHA IAQ guidelines for particulate control
Optional swing arm: 8" diameter in 7’, 10’, or 12’ lengths
|
|
---|---|
Airflow | 1,000 CFM (nominal) |
Filtration Type | Electrostatic Precipitator (ESP) |
Power | 115V/1Ph/60Hz, 0.5 HP (7.4 amps) |
Optional Motor | 1.0 HP / 230V |
Swing Arm Options | 8” diameter, 7’ / 10’ / 12’ lengths |
Inlet Option | 8" collar in place of swing arm |
Cabinet Dimensions | 44" H x 28" W x 42" D |
Weight | 400 lbs |
Certifications | ETL Listed |
Welding fume capture
Oil mist collection
Soldering and brazing stations
CNC machining
Plasma and laser cutting
Wet and dry grinding
Respiratory hazard reduction
Industrial workstations requiring source capture
Ready to configure your system? Contact us for XA hood options and swing arm lengths.
