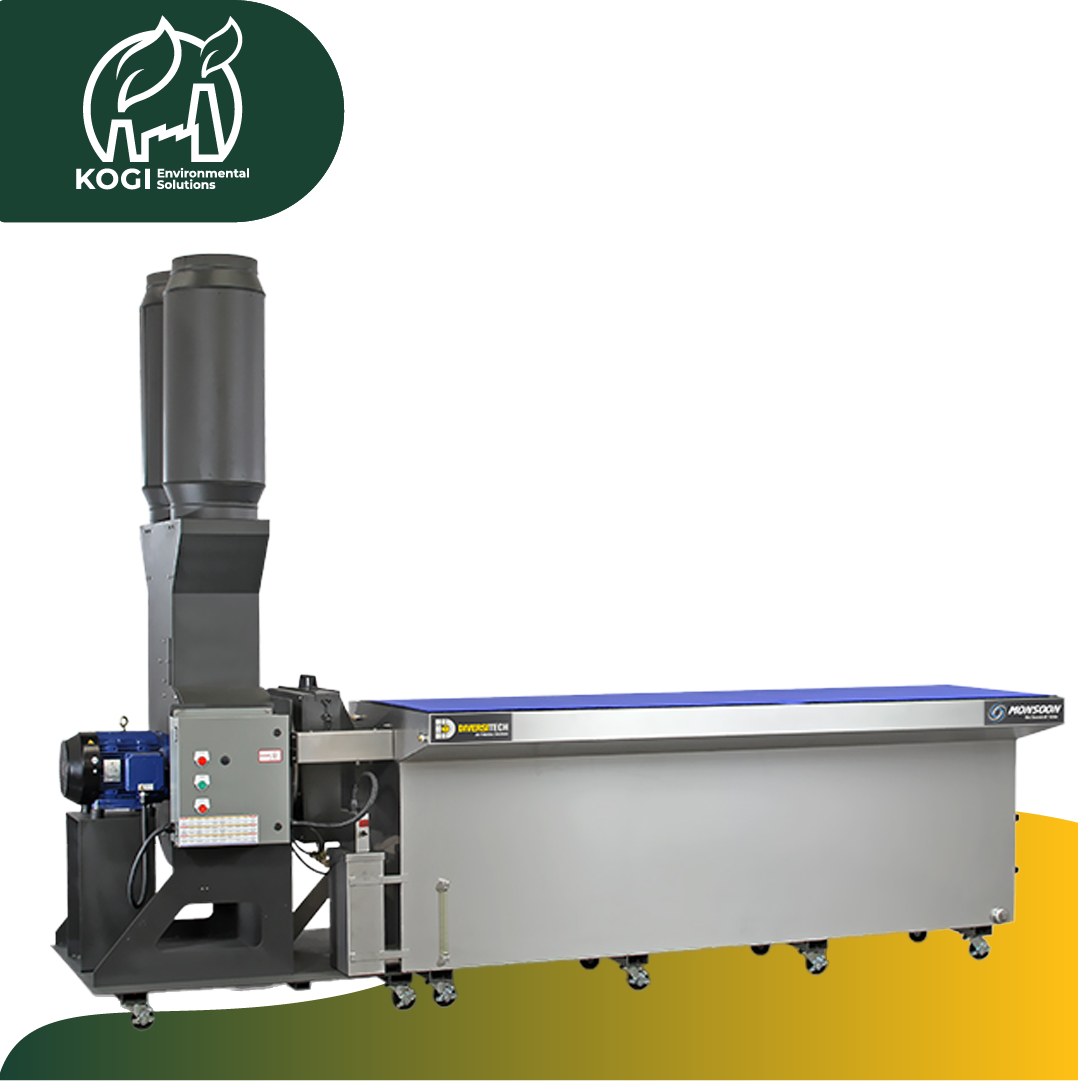

Monsoon 3′ X 8′ Wet Downdraft Table

Monsoon 3′ X 8′ Wet Downdraft Table

The Monsoon 3′ x 8′ Wet Downdraft Table is a powerful, all-in-one solution engineered for the safe capture of combustible metal dusts. By collecting contaminants directly at the source, this wet downdraft table minimizes fire hazards, improves indoor air quality, and delivers reliable performance for grinding, sanding, deburring, and finishing applications.

Its self-contained, ductless design provides high face velocity without requiring permanent installation or central systems. Contaminated air is drawn through the large ventilated worksurface and into a high-energy water torrent, where particles bond with water droplets and settle safely at the bottom of the collector. Interior baffling enhances turbulence for maximum filtration efficiency, while a mist-eliminator afterfilter prevents moisture or humidity from re-entering the workspace.

Built with a stainless steel anti-corrosion cabinet and removable internal components for fast cleaning, the Monsoon 3′ x 8′ is designed for long-term durability in demanding industrial environments. The unit also features a 12″ ergonomic overhang, allowing operators to sit comfortably during precision work.

Recommended Applications

Ideal for:
• Grinding
• Deburring
• Sanding and finishing
• Combustible metal dust (aluminum, magnesium, titanium)
• Powder mixing
• Buffing

Not ideal for:
• Welding
• Soldering
• Painting

Overview

The Monsoon 3′ x 8′ Wet Downdraft Table uses water filtration and high airflow to remove airborne combustible dust before it accumulates. Its expansive 96″ x 36″ work surface offers ample space for single or multi-tool setups, and its 15 HP TEFC motor delivers 6500 CFM of airflow—providing strong, even suction across the entire area.

This system is ideal for operations requiring NFPA-compliant dust capture, especially when handling aluminum, titanium, and other reactive metal dusts. The small footprint, ease of use, and minimal maintenance requirements make it an excellent choice for both small fabrication shops and larger industrial facilities.

Benefits

• Capture-at-source for cleaner air and improved safety
• Portable with industrial swivel casters
• Fully compliant with OSHA and NFPA combustible dust guidelines
• Compact footprint and simple operation
• Removable water-tree for easy cleanout
• Durable stainless steel construction

Features

• Large 96″ x 36″ ventilated worksurface
• High capture face velocity: 230 FPM
• 15 HP TEFC motor producing 6500 CFM airflow
• Stainless steel anti-corrosion cabinet
• Auto-level water control system
• Built-in ergonomic 12″ overhang
• Mist-eliminating afterfilter for dry exhaust

Options

• Automatic wash-down system
• WV-55 Sludge-Vac
• Side and back wall panels
• HEPA afterfilter kit (99.99% @ 0.3 micron)
• Dust-tight / vapor-tight light kit
• Custom configurations available on request
