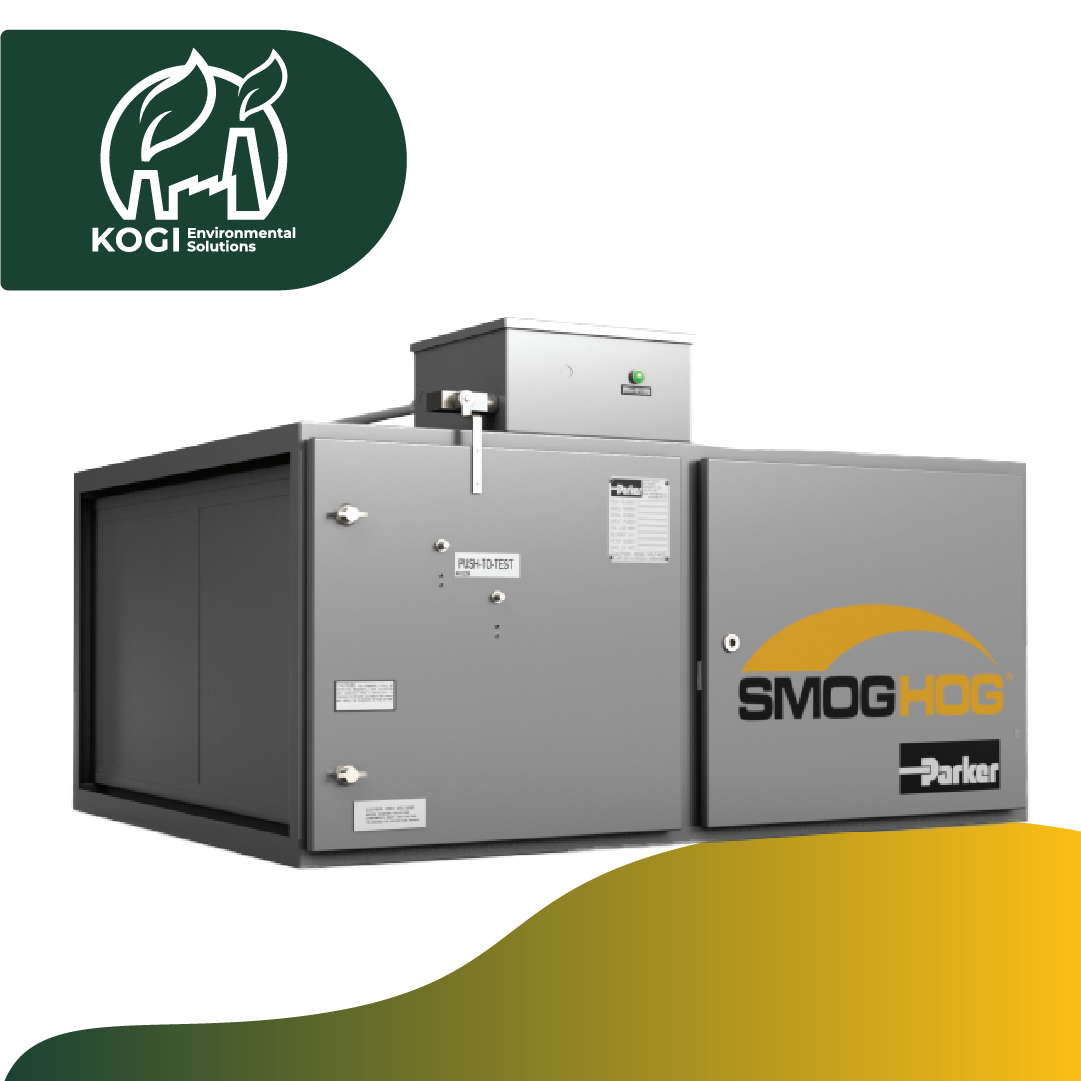

SmogHog SHN 10 - Ceiling mounted ESP mist collector

SmogHog SHN-10 Ceiling-Mounted Electrostatic Mist Collector | 1000–1250 CFM

Improve indoor air quality and comply with mist and smoke regulations with the SmogHog SHN-10, a high-performance ceiling-mounted electrostatic precipitator (ESP) mist collector engineered for industrial environments using oil-based and water-based coolants.

With an airflow capacity of 1,000 to 1,250 CFM, this unit is ideal for source capture or ambient air cleaning in machining centers, welding operations, and metalworking facilities. Its modular ESP design enables easy filter access for manual cleaning and long-term durability, while optional accessories expand its filtration capabilities for heavy-duty applications.

Attribute
Details
Model SHN-10
Airflow Capacity 1,000–1,250 CFM
Filter Type Electrostatic Precipitator (ESP), Single-Pass
Mounting Type Ceiling-mounted or above-floor
Motor Power 0.5 HP
Input Voltage 460 VAC, 3-phase, 60Hz
Airflow Direction Left-to-Right (standard)
Construction Powder-Coated Steel Panels
Side Panels 3/16″ Recycled Polyethylene (Black Matte)
Control Method External Motor Starter
Dimensions (H x W x D) 29″ x 21″ x 50″
Weight 215 lbs
Color Hog Gray
Brand Parker SmogHog



Optional Accessories & Upgrades
  • 95% DOP or HEPA after-filters

  • Dual polarity ionizer configuration

  • Drain bottle and loop trap

  • Mist-stop and oil impingement prefilters

  • Inlet/outlet plenums and side discharge modules

  • Machine-mounting kits

  • Odor control modules and remote indicator panels

  • High/low static pressure blower options


Common Industrial Applications
  • CNC machining & lathes

  • Welding and soldering

  • Threading, grinding, brazing

  • Forging, casting, heat treating

  • Flame cutting, gear cutting

  • Vacuum pump filtration

  • Plastic and rubber molding

  • Wire drawing, quenching, screw machining


Why Choose the SHN-10?

The SHN-10 mist collector is trusted across manufacturing and metalworking industries for its high-efficiency mist and smoke capture, reusable ESP filters, and low-maintenance design. Easily integrates into existing duct systems or operates standalone in ambient configurations.

Whether you're looking to reduce oil mist exposure or meet OSHA air quality standards, the SmogHog SHN-10 delivers reliable performance with proven Parker Hannifin technology.
