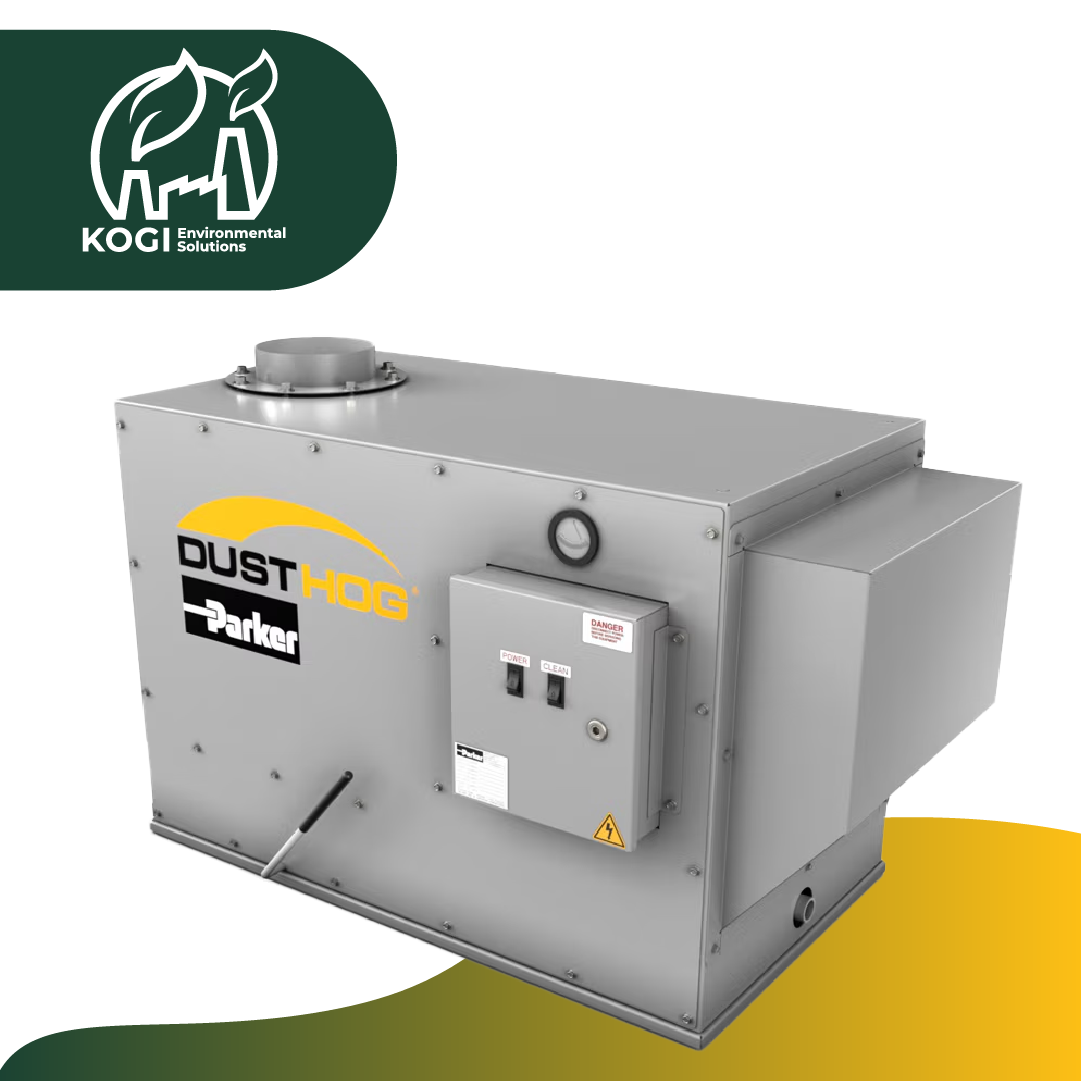

The Parker VF-750 Portable Filtration Unit is a mobile, self-contained source capture system built for intermittent use in industrial environments. Delivering 750 CFM of airflow, the VF-750 is engineered for ducted operations and localized source capture—making it an efficient, compact alternative to larger, centralized dust collection systems.
Equipped with a 6-inch slip collar inlet, the VF-750 connects easily to a flexible hose or rigid ducting (connection flange sold separately). Its small cabinet footprint makes it ideal for positioning near dust generation sources or even elevated on mezzanines to save valuable floor space.
Constructed from durable mild steel and powder coated in HOG Gray, the VF-750 is ideal for extracting welding and cutting fumes, solder smoke, bulk powders, and a wide range of fine particulate matter. This system includes fan controls, a filter pressure gauge, and a manual or automatic pulse cleaning system powered by an external compressed air source.
Self-contained system for ducted dust/fume capture
Compact, mobile design fits tight or elevated spaces
Durable industrial build with stainless-steel options
Reduces maintenance time and improves air quality
Optional HEPA and carbon after-filters available
Supports OSHA indoor air compliance standards
Attribute | Details |
---|---|
Air Flow Rate | 750 CFM |
Weight | 342 lb |
Application | Dust, Fume, Smoke |
Equipment Type | Mobile Media Filter Unit |
Filter Area | 141.0 ft² / 13.0 m² |
Filter Included | No |
Inlet Port Size | Slip Collar, 6 inch |
Motor Power Output Rating | 1 HP |
Current | 15 amp / 7.5 amp |
Sound Level | 74 dBA |
Air Consumption | 1.1 SCFM |
Depth | 39 inch |
Width | 30 inch |
Height | 39 inch |
Paint Type | Powder Coated |
Body Material | Mild Steel |
Brand | DustHog |
Options | Sold separately: Filter media, After Filter, Wheels |
Product Series | VF 750 |
Filter Material | Media |
Color | HOG Gray |
Welding and plasma cutting fume extraction
Solder smoke capture
Bulk powder processing
Fine particulate removal at the source
Intermittent-use fabrication environments
Just add input power and compressed air, and press start. The VF-750 offers efficient, portable air quality protection—wherever and whenever you need it.
